Acoustic Door SALE

Amadeus Acoustic Solutions are holding an acoustic door set sale. The sale doors we have on offer were purchased in 2009 for a photo-shoot which did not take place. They have never been used and are in factory fresh condition. Take a look at the photos and details below:

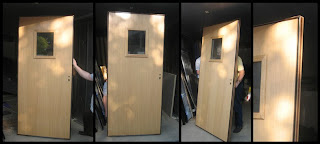

Door ref: 1.47db

Acoustic rating 47dB. Single leaf acoustic door measuring 930mm x 2040mm x 48mm thick. Light OAK laminate finish, hardwood lippings and frame; 68mm X 68mm. Acoustic vision panel, hardwood beading 280mm x 375mm. Door reference ISA DX45. Fire rated @ FD 30. Multi layer acoustic core including 2 steel sheets. Frame includes 4 lift-off hinges @ 160mmx 70mm. Triple brush seal at Threshold

Perimeter seals. Intumescent seals are factory fitted to the exposed hedges of the door leaf. Combined smoke and acoustic seals are fitted within the frame and leaf. The seal has been to meet both smoke control and acoustic standards. Fully compliant with European Standard EN1634 and with BS 476.

List price £2,450.00 ex delivery & VAT. SALE PRICE £1,775.00 ex delivery & VAT

Door ref: 2.47db

Same as above except colour (blue)

Door ref: 3.41db

Acoustic rating 41dB. Single leaf acoustic door measuring 930mm x 2040mm x 41mm thick. White laminate finish, hardwood lippings and frame; 68mm x 57mm. Acoustic vision panel, hardwood beading 270mm x 1170mm. Door reference CLUB 39. Fire rated @ FD 30. Solid timber core, brush seals at threshold. Frame includes 4 lift-off hinges @ 140mm x 70mm.

Perimeter seals. Intumescent seals are factory fitted to the exposed hedges of the door leaf. . Combined smoke and acoustic seals are fitted within the frame and leaf. The seal has been to meet both smoke control and acoustic standards. Fully compliant with European Standard EN1634 and with BS 476.

List price £1,275.00 ex delivery & VAT. SALE PRICE £885.00 ex delivery & VAT

Door ref: 4.41db

Door ref: 5.41db

Door ref: 6.41db

Acoustic rating 41dB. Each of the three single leaf doors pictured above have identical dimensions; 930mm x 2040mm x 40.2mm. Each have acoustic vision panels. The dimensions are as follows.

· Charcoal door – 325mm diameter

· Red door – 270mm x 1170mm

· Cream door – 265mm x 365mm

Each door comes with a metal frame, thus the door reference is Pyroporte CLUB 39. It is for insertion into a plasterboard (or similar anchor). The frame is reinforced by a factory installed stabilising wood profile section. The plasterboard fits inside the frame. Each frame is 2048mm x 934mm.

The doors are as described in the above 41dB door

FAQ:

Delivery
We can arrange for pick up from our store and delivery anywhere in the British Isles. There will be a charge for packaging of £25.00 for each door and the delivery will be charged at “Courier cost”. Alternatively we can arrange for buyers to arrange their own pick up.

See before you buy

We can arrange to meet interested parties at our store, this is located near Battle in East Sussex. Alternatively we can always arrange for more detailed photo’s to be taken if so desired.

Installation

We can arrange for our experienced installers to both deliver and install the door/s. A quotation will be offered once we know the geographic location. An aperture must be sufficient to accept the door dimensions as shown.

Terms of business

Full payment, including any costs for packing, delivery and VAT must be made before despatch or pick-up.

Lead-times

These doors are available immediately. For any buyer purchasing two or more of these doors a discount of 5% will be given.

Contact

John Locke by email: john@amadeus-equipment.co.uk or by phone: 01424-775867 or mobile: 07887 762 899. Or by writing to: Amadeus Acoustic Solutions Ltd, Great Beech Barn, Kane Hythe Road, Battle, East Sussex TN33 9QU

Stonyhurst College - Modular room installation

The Amadeus Acoustic Solutions pre-Christmas installation of modular acoustic rooms at Stonyhurst College was a roaring success. From offload to completion of the build we took 7 days on site to complete the installation of 5 rooms. Each room performs above and beyond BB93 requirements for insulation, transmission and reverberation times.

This job, along with all the others, highlight the single biggest advantage of our Boxy Modular Rooms. They provide a guaranteed performance, that not only meets the acoustic requirements of BB93 but exceeds them.

From the winding roads of the Umbrian town of Terni, Italy, to the sweeping driveway of Stonyhurst College Lancashire, came 5 Modular Acoustic Rooms ready for installation to begin on a very cold but sunny Thursday 11th December 2008.

Stonyhurst College:

What five rooms look like flat packed:

The team off loading the truck:

Stonyhurst College:

With all jobs of this nature the practical implications, such as how to offload items from A to B, are of paramount importance. In the case of this paricular job, the offload point stood 12 metres from and 20 metres above the resting point.

Some heavy duty kit was required to ensure that each pallet was craned in and dropped precisely where required, to allow each piece, that had been meticulously packed and labelled, to be brought in and utilised immediately.

The space that would soon hold 5 modular rooms:

With the rooms safely offloaded the build commenced and completed on Thursday 18th December, 7 days from arrival of the rooms.

Music lesson being taught in one of the rooms:

The rooms:

The School were delighted with the project and had the following to say;

" As part of a review of the department it was recommended that we look at modular practice rooms as a viable alternative. Out of three quotes the Amadeus submittal was the most comprehensive, easiest to sort out and came with the personal touch of a visit from John Locke, Director.John brought Claudio Lamberini, owner and chief engineer of Boxylab Srl to the school to carry out a detailed site survey and discuss all elements of the design and construction. By using AutoCad we were able to see, immediately, pictures of the rooms we could have and how they would look in situ, enabling us to make quick and accurate decisions.Once ordered the whole process was dealt with professionally, everything arrived when they said it would. The whole team worked superbly well and built the five rooms within the allotted time, taking great pride in their work. After sales communication has been superb with regular emails and visits to check on progress and answer any questions. We are now the proud owners of five superb modular acoustic rooms that are used for teaching, practising, rehearsing and recording. These rooms are easy to maintain and comfortable to work in, plus the pupils and staff queue up to use them! I would recommend Amadeus/Boxy modular rooms to anyone who is looking to provide modern, well built, appointed rooms that are acoustically designed, virtually soundproof, delightful to use and great to look at. They are fantastic and a real benefit to the department." Gregg Mann Director of Music

For further information on our Boxy Acoustic Modular Rooms, acoustics for education, acoustic panels, and so much more please visit: www.amadeus-equipment.co.uk

St Olaves School, York - Bespoke acoustic panels

Amadeus Acoustic Solutions Ltd were approached by Alan Miller - Architects in September 2009 and asked to submit a price for the installation of acoustic ceiling panels required to calm the very high reverberation within the St Olaves school concert hall. This is something that we are very experienced in dealing with, so both the school and the Architects were in good hands.

The type, shape and dimension of the bespoke panels were jointly developed by the architect and their acoustic consultants, ARM Acoustics. The panels were made very quickly by Acoustic GRG and installed in just 4 days by the specialist team from Amadeus Acoustic Solutions.

As you can see from the photographs below, we pride ourselves not only on the acoustic excellence of our work, but also the aesthetic distinction we create within any given environment. We work very closely with our clients to make sure we deliver on all levels. In this case, the spectacular bespoke panels graced the hall with contemporary charisma without detracting from the purpose, function or style of the building.


If you would like more information on the services we can offer, including acoustic consultancy, bespoke acoustic panels and acoustic treatment for education, please visit www.amadeus-equipment.co.uk or email info@amadeus-equipment.co.uk

University of Central Lancashire (UCLAN) - Modular room installation

When the new music department at the University was originally built, the Media Factory determined that they required some specialist rooms in which recorded music and live music would be taught and practiced. It was soon discovered that the playing of any type of music, particularly percussion and amplified guitar, caused distracting sound transmission that travelled all around the MEDIA FACTORY. The volume depended where in the building you were located; nevertheless even at the lower end of the sound spectrum, transmission was distracting. This was having negative effects on teachers and students throughout the University, both in and out of the music department. Therefore, something needed to be done.

Amadeus Acoustic Solutions were delighted when we won the right to supply sound proof modular rooms to the University of Central Lancashire through a public tendering process – we knew we could help alleviate the acoustic issues being experienced by the University and our Boxy modular rooms were the perfect way to do this.

The rooms were to be located on two upper floors within exiting rooms. The entire project, from off-load to completion took just 3 days. Each of the rooms is separated from the structure into which they are located, thus sound transmission is very low and there is absolutely no disruption to teachers or students across the Media Factory. Another wonderful success story!

Off loading materials:

Working on the interior of the rooms:

Inside one of the rooms. Showing acoustic panels:

Outside the rooms:

Comments from Steve Cooke (Principal Technician, School of Creative & Performing Arts) at UCLAN:

“The booths are fabulous. Many thanks for your hard work in the realisation of this project. We were impressed by the organisation and efficiency of the installation team and the quality of the work and the materials are excellent.”

Please visit us at www.amadeus-equipment.co.uk
